Congratulations on your purchase and welcome to Philips Norelco!To fully benefit from the support that Philips Norelco offers, register your product at www.philips.com/register.

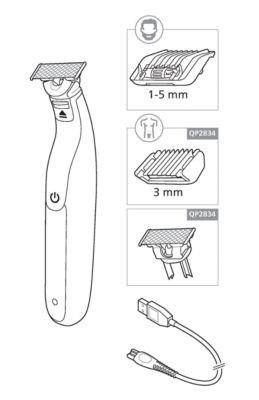

Your product comes with the following components included:
- 360 face blade
- OneBlade handle
- USB cable
- Note: A suitable power source (e.g. Philips HQ87) is available via www.philips.com/support.
- 5-in-1 guard
The following additional components are included with QP2834 only:
- Body blade
- Click-on guard for body hair 1/8 in. (3 mm)
- Use this product for its intended household use as described in this manual.
- For hygienic reasons, the product should only be used by one person.
- You can use this product either wet or dry, or even in the shower. For that reason, this product does not work while it is connected to the power outlet. Except when charging, always unplug this product from the power outlet.
Charging OneBlade
When the battery is low, the motor will run more slowly.
Charging with the USB cable
- Insert the small plug of the USB cable into the socket in the bottom of the product.
- Connect an adapter
-
- Insert the USB plug into the USB power source (not included).
- Attach to the power source
-
- Insert the USB power source into the power outlet.
- For a full charge
- To fully charge the battery, allow it to charge for 8 hours. The charging indicator will remain illuminated when the product is connected to the power outlet.
- Unplug your OneBlade
- Unplug the adapter from the power source, then remove the USB cable from the handle.
- Note: for safety reasons, the product can only be used when the USB cable is not attached.
- Time to style
- A fully charged OneBlade has an operating time of approximately 30 minutes.
Turning OneBlade on and off
To turn the product on or off, simply press the power button once.
Tip: If the product will not turn on, check that the battery is fully charged and remove the charging cable from the handle before pressing the power button.
Shaving and edging
To shave with OneBlade, remove any combs or guards. Your OneBlade is waterproof, so you can shave in the shower or with foam or gel.
-
-
-
- To shave, make long, slow and steady strokes, applying gentle pressure with the blade flat against your skin. Move the blade back and forth to make use of both sides of the blade.
- Trim the edges
-
-
- To edge your beard, mustache or sideburns, hold the blade perpendicular to your skin.
- Time to clean
- For best results, clean your OneBlade after each use.
Trimming
To trim the length of your facial hair, use the 5-in-1 guard. The numbers on the guard relate to the hair length remaining after trimming (in millimeters).
Tip: if you are unsure which length you prefer, start with the longest setting and reduce the length further if necessary.
-
- Hook the back of the guard over the back of the blade, then gently press the front of the guard downwards until it clicks into place.
- Note: if you experience difficulties attaching the guard, ensure that the two small hooks on the bottom (on the side closest to the teeth) are properly aligned on the upper edge of the blade.
- Press and roll
-
- Press down on the length dial on the comb using your thumb, and roll it until your preferred length is selected.
- Trim against the grain
-
-
- Trim against the direction of hair growth, with the teeth of the guard flat against your skin.
- Detach the guard
-
- To detach the guard, hold the handle firmly and gently lift the guard off the blade. For best results, clean your OneBlade after each use.
Trimming body hair
Note: the following section applies to the QP2834 only.
The 1/8inch (3mm) body guard allows you to trim hair on your body below the neckline (for example chest, armpits and groin).
For hygiene reasons, we recommend using the separate body blade provided when trimming body hair.
For delicate areas such as the groin, only trim when the guard is attached.
-
- Place the the guard onto the blade and gently press until it clicks into place.
- Trim against the grain
-
- Trim against the direction of hair growth, with the teeth of the guard flat against your skin. The guard is double sided, so you can move your OneBlade back and forth to cut hairs growing in different directions.
- Remove the guard
- To detach the guard, hold the handle firmly and gently lift the guard off the blade. For best results, clean your OneBlade after each use.
Cleaning OneBlade
-
- Turn on your OneBlade and rinse it under the tap with cold or lukewarm water. If you shave with foam or gel, be sure to remove all residue after each shave.
- Rinse the guard
- Guards can also be cleaned under the tap using warm water.
- Allow to air dry
- Allow your OneBlade and accessories to air dry completely before storage.
Note: Do not bang the handle on the sink or any hard surface, a this may damage the product. Do not use a towel or cloth to dry the blade.
Storage
Store your OneBlade in a safe, dry location where it will not be crushed, banged, or subject to damage. To protect the blade, store the product with the protection cap attached. Do not wrap the cable around the product when storing, and do not place or store the product where it can fall or be pulled into a tub or sink, water or other liquid while plugged in.
When to replace the blade
For optimal cutting and gliding performance, we advise you to replace the blade every 4 months or when it no longer provides the shaving or trimming results you expect. Depending on your usage behavior, the exact lifetime of the blade could be longer or shorter.
Wear indicator
A replacement symbol will gradually appear on the blade as you use it. When the replacement symbol is fully visible, it's recommended to replace your blade.
Note that accessories such as guards can prevent the replacement symbol from becoming visible.
Tip: the replacement symbol resembles the arrow icon on the handle of your OneBlade. For older blades, a green rectangle may appear in place of the replacement symbol.
If blade is damaged
If you notice any damage on your blade, please replace it immediately.
How to replace the blade
Before you begin, make sure your OneBlade is turned off and any guards are removed.
-
- Press the release slide upwards and lift off the old blade, holding it by both short sides.
- Note: hold the blade before pressing the release slide, because the blade may fly off and become damaged.
- Discard the old blade
- The old blade can be discarded with your normal household waste.
- Unboxing
- Remove your replacement blade from the packaging. To avoid damaging the blade, don't use sharp objects or crush the packaging.
- Insert into the handle
-
- Hold the new blade by both short sides and insert the protrusions on the bottom of the blade into the slots on the OneBlade handle.
- Wait for the click
- Gently press the blade downwards onto the handle until it clicks into place.
- Ready to go
- Your OneBlade is now ready to use.
The following Philips Norelco replacement blade packs are available for your OneBlade:
- Face blades: QP420/80 and QP430/80.
- Body blades: QP210/80, QP220/80 and QP230/80.
For assistance, visit our website: www.philips.com/support or call toll free 1-800-243-3050.
- This product contains a rechargeable battery which must be disposed of properly.
- Contact your local town or city officials for battery disposal information. You can also call 1-800-822-8837 or visit www.call2recycle.org for battery drop-off locations.
- For assistance, visit our website www.philips.com/support or call 1-800-243-3050 toll free.
- Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. For recycling information, please contact your local waste management facilities or visit www.recycle.philips.com.
Philips North America LLC warrants this new product (except blade) against defects in materials or workmanship for a period of two years from the date of purchase, and agrees to repair or replace any defective product without charge.
IMPORTANT: This warranty does not cover damage resulting from accident, misuse or abuse, lack of reasonable care, the affixing of any attachment not provided with the product or loss of parts or subjecting the product to any but the specified voltage or batteries.*
NO RESPONSIBILITY IS ASSUMED FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES.
In order to obtain warranty service, simply go to www.philips.com/support. It is suggested that for your protection you return shipments of product by insured mail, insurance prepaid. Damage occurring during shipment is not covered by this warranty.
NOTE: No other warranty, written or oral, is authorized by Philips North America LLC.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion and limitations may not apply to you.
*Read enclosed instructions carefully.
If you are not fully satisfied with your product send the product back and we’ll refund you the full purchase price.
The product must be shipped prepaid by insured mail, insurance prepaid, have the original sales receipt, indicating purchase price and date of purchase.
We cannot be responsible for lost mail.
The product must be postmarked no later than 45 days after the date of purchase. Philips reserves the right to verify the purchase price of the product and limit refunds not to exceed suggested retail price.
To obtain the money-back guarantee service, please go to www.PhilipsMoneyBack.com and follow the simple 3-step process.
Delivery of refund check will occur 6–8 weeks after receipt of returned product.
